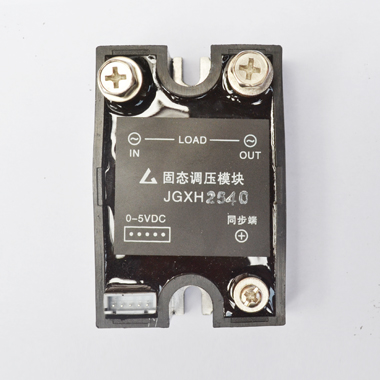

This module has an input and output end of the optical isolator, in order to facilitate realization of the weak control the strong power, the input voltage level to achieve the output load power control, high input impedance, directly through the digital to analog converter with the computer, digital program-controlled circuit interface, no longer with external power supply synchronization circuit is very easy to realize the output load voltage power stepless adjustment, widely used in lighting, temperature control equipment, AC motor soft start, AC series wave speed and other power automatic adjustment of occasions.

Rated output voltage: 220VAC, 380VAC
Rated output current: 10-120A

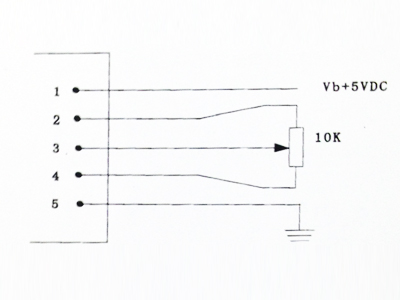

Input control signal: 0-5VDC or 10K potentiometer
Output voltage range: 0-220VAC, 0-380VAC
Between leading end and the bottom between the input and output circuits media
Pressure: 2500VAC 1min / 50Hz

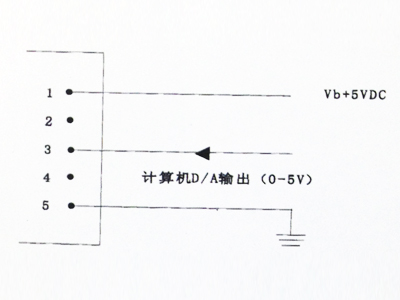

　　1 meter with a computer interface or interfaces　　　　　　　　　　　Solution 2 and bit adjustment when
　
Note:
1, when using inductive load, be sure and take the output of a varistor, a value of 1.6-1.9 times the load voltage;
When the Russian regulator 2,5A above requirements plus radiator, current ≥10A, please use air or water.
3, the module plus the bias voltage Vb + 5v current of 30mA;

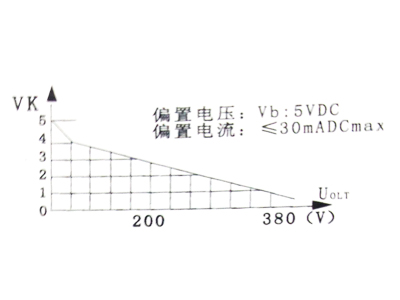

4, the control module is the reverse, that is, when the control input voltage is DC5V, load terminal voltage is 0V, the control input voltage is 0V, the load terminal voltage of 220V.
