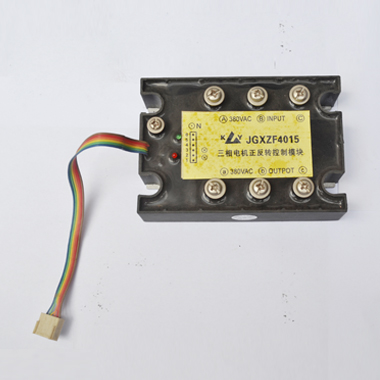

JFXZF series:



This module uses single-chip design, input and output isolation, reversing function within the module has been designed, two-color LED display three-phase motor rotation.

Operating voltage: 50-380VAC
Bias voltage: 5VDC
Bias Current: ≤50mA
Terminals and base plate: ≥1500V
Circuit between the input and output voltage: ≥2500V

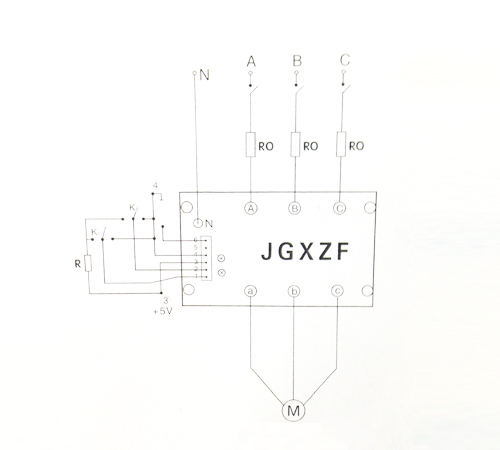

③-④ external bias supply
③ then + 5V
④ then 0V

① set high (1) or floating motor is stopped
① set low (0) to start the motor
② set high (1) the motor is transferred red light
② set low (0) Motor reverse the green light
